EVDC DC charging pile vehicle monitoring junction box (electric vehicle tester)

Series:

The EVAD DC charging pile vehicle monitoring junction box mainly functions in fault diagnosis. It connects a diagnostic device between the electric vehicle and the charging pile. The diagnostic device monitors the charging voltage and current, control guidance signals, and communication messages in real time. It losslessly parses the above charging information and uploads it to the remote diagnostic system via a network module in real time. The fault status and the entire charging process are realistically reproduced remotely, allowing professionals to perform remote diagnosis, quickly locate and solve problems.

Product Inquiry

Details

The main function of the EVDC DC charging pile vehicle monitoring transfer box is fault diagnosis. It connects a diagnostic device between the electric vehicle and the charging pile. The diagnostic device monitors the charging voltage and current, control guidance signals, and communication messages in real time. It losslessly parses the above charging information and uploads it to the remote diagnostic system via a networking module in real time. The fault status and the entire charging process are realistically reproduced remotely, allowing professionals to perform remote diagnosis, quickly locate and solve problems.

Through intelligent algorithms and specially designed charging transfer devices, lossless monitoring of charging information is achieved, without omissions or distortion, monitoring the entire charging process. The diagnostic system can automatically capture and display abnormal charging information, quickly locating fault points. The portable design, with a built-in high-precision metering detection module, facilitates connection between the electric vehicle and the charging pile via the charging transfer device, suitable for on-site metering verification of charging piles.

Product Features

◆ Measurement of voltage, current, power, starting SOC%, starting SOC%, ending SOC%, charging time

◆ BMS parameter display, charger parameter display

◆ Rated energy, charged energy, estimated energy, battery type, battery rated capacity (Ah), battery rated voltage, battery manufacturer

◆ Battery charge cycles, vehicle VIN code, communication data monitoring

◆ History data query 10 groups, automatic coverage

◆ USB interface for PC remote monitoring data

◆ No power supply required (can be connected to 220V 50HZ or not connected)

◆ Rated current: National standard 250A

◆ Charging cable: 1.5 meters

◆ Display method: LCD monitoring display

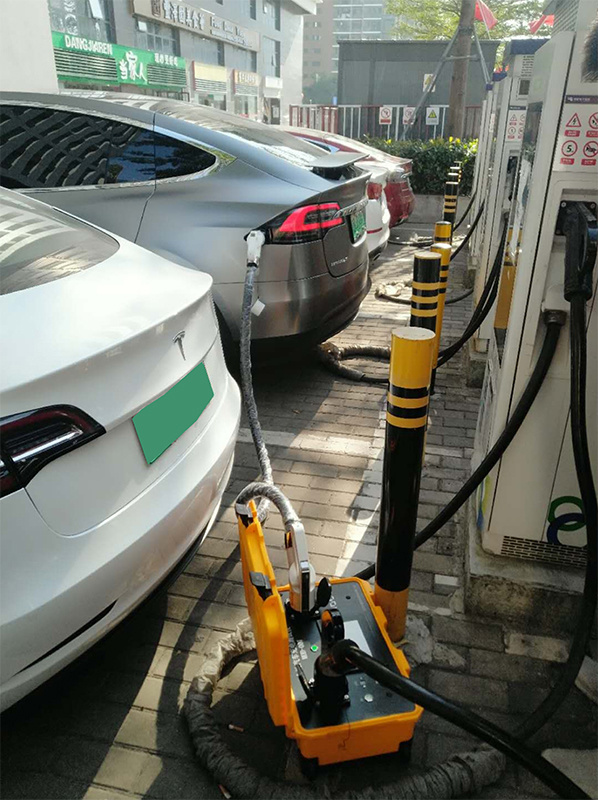

On-site Application
