AHY-15 STANDARD SERIES AC CONSTANT CURRENT SOURCE

Series:

The AHY-15 standard series AC constant current source is a wide-spectrum, high-precision, low-harmonic, low-distortion constant current source. This constant current source is an AC power supply that can maintain a constant output current even when the external power grid fluctuates or the impedance characteristics of the load change. This power supply is mainly used in products and places where specific current thermal effects are applied and tested. For example, experiments on circuit breakers, fuses, thermal relays, magnetic starters, coils, etc.

Product Inquiry

Details

Product Features

◆ Constant current, constant current adjustment range: 0-maximum value continuous adjustment, constant voltage, constant voltage adjustment range: 0-maximum value continuous adjustment.

◆ When using constant current and constant voltage, it can automatically switch between them, maintaining both control and protection characteristics; input and output are fully isolated.

◆ The AC constant current source is specially designed and manufactured for low-voltage electrical appliance users. Its output current is constant, and the output waveform is a pure sine wave. It can be used as a test instrument for overcurrent experiments.

◆ This AC constant current source can handle resistive, inductive, and capacitive loads, meeting the requirements of low-voltage electrical appliances for test power supplies.

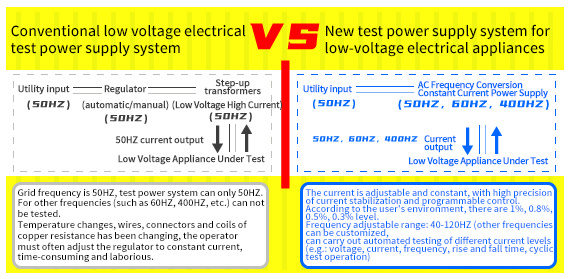

◆ Outstanding advantages: high current stability accuracy. Accuracy levels of 1%, 0.8%, 0.5%, and 0.3% are available depending on the user's environment. Ensures constant output current. Previously used high-current generator solutions had fluctuating copper resistance in wires, connectors, and coils due to temperature changes.

◆ Operators frequently had to adjust the voltage regulator to maintain a constant current, which was time-consuming and laborious, and the accuracy could not compare to this power supply. In low-voltage electrical appliance production, for projects requiring current calibration and aging, this power supply is currently the best choice, such as setting the operating current of thermal relays and measuring the thermal trip current of air circuit breakers.

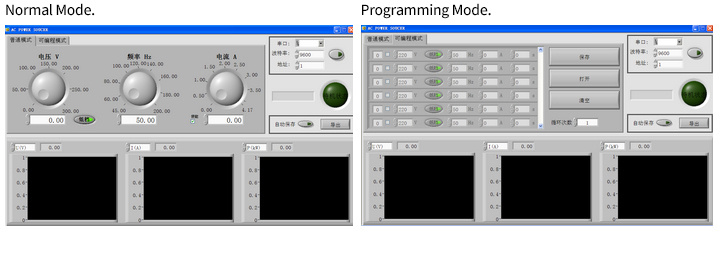

◆ Automated testing of different current levels can be performed (items: voltage, current, frequency, rise/fall time; cyclical testing operation is possible).

◆ Adjustable frequency range: 40-500HZ (optional), fixed output: 50HZ, 60HZ (more fixed output frequencies within this range can be designed according to user needs).

◆ RS232C/485 communication interface is standard.

Product Applications

AC air circuit breakers / AC contactors / mechanical switches / electronic switches / AC current transformers / thermal relays / molded case circuit breakers / miniature short-circuit devices and those requiring rated current setting

Operating current / short-circuit protection current, etc. / automated testing and calibration platforms / current requirement testing locations

Product Specifications

AHY-15 Series Programmable AC Constant Current Source
Model		AHY-15-10-50	AHY-15-10-100	AHY-15-10-200	AHY-15-10-300	AHY-15-10-500
		AHY-15-10-1000	AHY-15-10-1500	AHY-15-10-2000	AHY-15-10-3000	AHY-15-10-5000
		AHY-15-10-4500	AHY-15-10-6000	AHY-15-10-7000	AHY-15-10-8000	AHY-15-10-1M
Manufacturing Method		IGBT/SPWM
Input	Phases	1φ2W(≤ 10KW) 3φ4W(≥10KW)
	Voltage	220V±10%( ≤10KW) 380V±10%( ≥10KW)
	Frequency	47 Hz - 63 Hz
Output	Phases	1φ2W (3φ4W optional)
	Voltage	0-3000V (optional)
	Frequency	45Hz-63Hz continuous adjustment, fixed 50Hz/60Hz, (40-500 optional)
	Wiring	Low current terminal, high current output copper busbar
	Protection	Electronic circuit quickly identifies overcurrent, overvoltage, and overheating, automatically tripping; VA=0 in non-test state
LCD Display		Voltage, Current, Frequency, Power, Power Factor PF
Power Supply Regulation Rate		0.10%
Load Regulation Rate		0.5 %FS
Waveform Distortion Rate		2% (pure resistive load)
Frequency Stability		0.01%
Voltage Resolution		0.1 V
Current Resolution		0.001 A/0.01 A/0.1 A/1 A
Frequency Resolution		0.1Hz
Measurement Accuracy	Voltage	0.5 % FS±5dgt
	Current	0.5 % FS±5 dgt
	Power	0.5 % FS±5 dgt
	Frequency	0.01 % FS±5 dgt
Setting Accuracy	Voltage	1 % FS
	Frequency	0.1 % FS
Protection		Overcurrent, Overtemperature, Overload
Operating Environment		Temperature: 0 - 45°C, Relative Humidity: 0-90% (non-condensing), Altitude: 1500m
Insulation Resistance		500Vdc 20MQ or more
Withstand Voltage Insulation		1800Vac/5mA/1 minute
Cooling Method		Forced Air Cooling
Communication Interface		RS 232 C/485, corresponding communication protocol provided (standard)
Customizable Functions		Voltage/Appearance customizable
Efficiency		≥98
Noise		≤60DB (1m)
Protection Level		IPX20
Current Transformer Accuracy		0.2S
Volume		Inquiry factory
Weight		15kg~900kg
Remarks		The above models are our regular models. Other voltage and current levels can be customized according to the actual needs of users.

◆ This product is constantly being updated. Specifications are subject to change without notice.

◆ Please contact our sales staff for other voltage and current specifications.

◆ We can accept special customization according to user's testing requirements.

◆ Three-phase output can be customized
