ZM2000 SERIES WIND TURBINE SIMULATOR
+
  • ZM2000 SERIES WIND TURBINE SIMULATOR

ZM2000 SERIES WIND TURBINE SIMULATOR

The ZM2000 series wind turbine simulator can simulate different wind speeds, is programmable, and uses fully digital converter equipment for simulation. The entire process is fully digital, and the equipment can output AC power that meets national standards to the power grid through DC/AC conversion technology.

Product Inquiry
Image Name

Details

The ZM2000 series wind turbine simulator can simulate different wind speeds, is programmable, and uses fully digital converter equipment for simulation. The entire process is fully digital, and the equipment can output AC power that meets national standards to the power grid through DC/AC conversion technology.

To develop wind power generation, research on wind power generation technology is very important. Because the control system of a wind turbine system is very complex, to improve its control performance and conduct research on wind power generation technology, the ideal experimental method is to directly connect the generator to the wind turbine and conduct on-site experiments. However, this method is time-consuming and costly, and there may not be an experimental site; for example, different wind turbine experiments require finding the corresponding wind turbines. Therefore, various wind turbine simulation systems have been proposed to replace actual wind turbines for experiments.

A well-designed wind turbine simulation system can replace wind turbines for a large part of the experiments, and the actual effect is similar to that of a wind turbine, which greatly facilitates wind power generation experiments; the wind speed simulator can simulate different wind speeds indoors, is programmable, and uses fully digital converter equipment for simulation. The entire process is fully digital, and the equipment can output AC power that meets national standards to the power grid through DC/AC conversion technology; this equipment is mainly used in university laboratories and research institutions. Even without wind power resources, wind power generation experiments can be conducted. The wind turbine curve can be customized, offering high flexibility and providing significant assistance in researching the impact of wind turbine power generation on the power grid.

In addition, since this equipment has no rotating equipment, the simulation of the wind power generation process is completely silent and highly reliable. Furthermore, the accompanying wind turbine simulation software can be used to design wind turbine parameters and provides important guidance for building a wind turbine platform.



  Product Features


◆ Output voltage, current, and power can be set from zero to full range;

◆ Constant voltage, constant current, and constant power can be automatically switched, maintaining a balance between control and protection;

◆ Simulates the start-up, shutdown, operation, and grid connection process of a real wind turbine;

◆ Simulates the power generation and operating status of a real wind turbine under different wind speeds;

◆ Simulates the interactive operation of a real wind turbine with the power grid and distributed power sources, as well as self-start/stop operation;

◆ Simulates the control system of a real wind turbine, supporting remote/local setting of setpoints and parameters;

◆ Measures various electrical parameters of the measurement system and records them in real time;

◆ Parallel operation function: External M&S master-slave parallel port, a single unit can switch between master and slave through system settings, supporting up to 200 units of the same model in parallel;

◆ Communication interface: RS232, RS485, and GPIB communication interfaces are optional, MODBUS-RTU standard communication protocol, standard 0-5V analog signal interface;

◆ High voltage regulation accuracy and low ripple voltage;

◆ Overvoltage, overcurrent, overtemperature, and short-circuit protection functions;

◆ Input and output isolation.

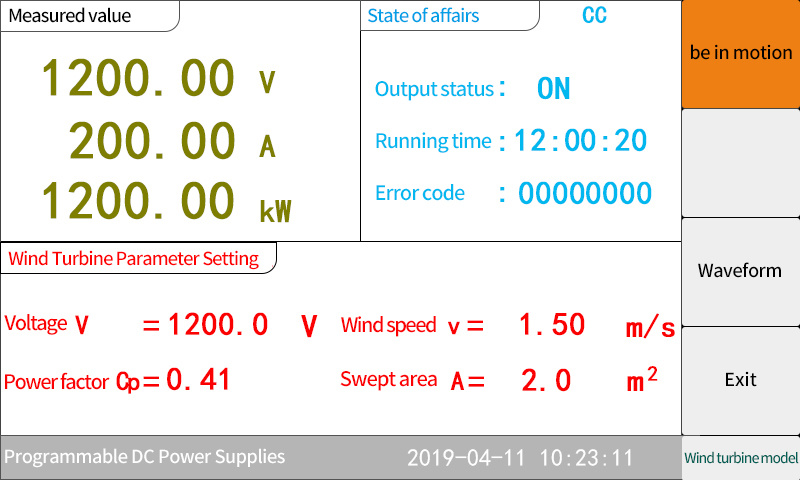

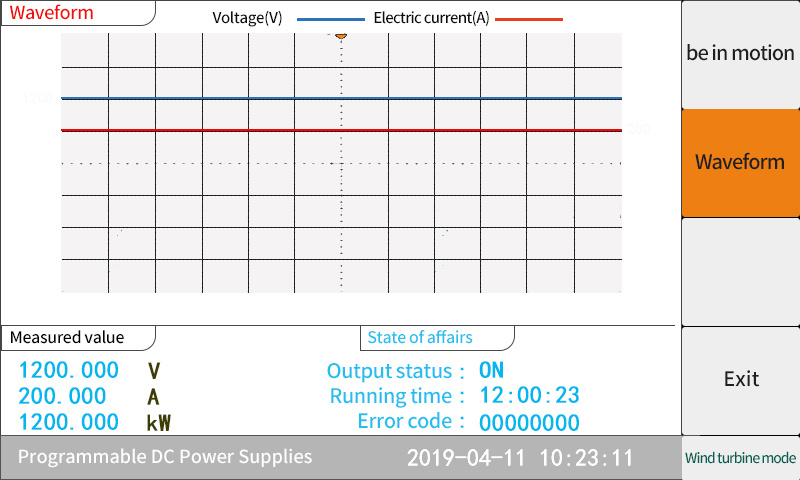

  Host Computer Software
