EVA1000P PORTABLE AC CHARGING PILE DETECTOR (China, Europe, and America)

Series:

The AC charging pile testing system is mainly used for online debugging, offline detection, aging test, and function verification of AC charging pile products. This testing system strictly refers to national standards GB/T18487.1-2015 and GB/T 20234.2-2015, realistically simulating the car charging process and various faults. It avoids the inconvenience of using electric vehicles as testing devices, incomplete testing content, and the inability to simulate formal faults, while also preventing charging pile faults from damaging the test vehicles. This testing system can measure charging voltage, current, power, and electricity; test CP and CC guide signals; and simulate leakage faults. A large-size touch screen displays the above parameters for easy observation and operation.

Product Inquiry

Details

Product Features

♦ Uses a 250V/440V 32A (three-phase) gun seat, compatible with single and three-phase AC charging pile testing.

♦ Power supply method can be selected as external power supply or charging pile power supply; no external power supply is needed.

♦ Real-time detection of voltage, duty cycle, and frequency on the CP line of the charging pile. The maximum output current of the charging pile is calculated according to national standards through the duty cycle.

♦ Real-time detection of the CC-end connection resistance on the charging pile, judging the connection status and cable capacity according to national standards.

♦ Built-in single-phase or three-phase data acquisition card, real-time display of charging voltage and current data of the charging pile.

♦ Real-time monitoring of the temperature of the charging gun seat.

♦ The S2 switch is external and controlled manually.

♦ Uses a 7-inch touch screen operation.

♦ Determines the acceptable range of CP voltage, CP frequency, CP duty cycle, and CC resistance data and displays the judgment results.

♦ All seven-hole wires of the AC gun seat are led out using banana plugs for convenient external instrument measurement. A, B, C, and N use 16mm sockets, with a withstand voltage of 3KV and a maximum current of 80A.

♦ No-load, load can use single-phase ALB-DR10 or ALB-SR45.

♦ Total weight less than 6KG, convenient for carrying outdoors.

♦ Spot products, can be tested on-site at the company.

♦ Available in national, European, and American standards

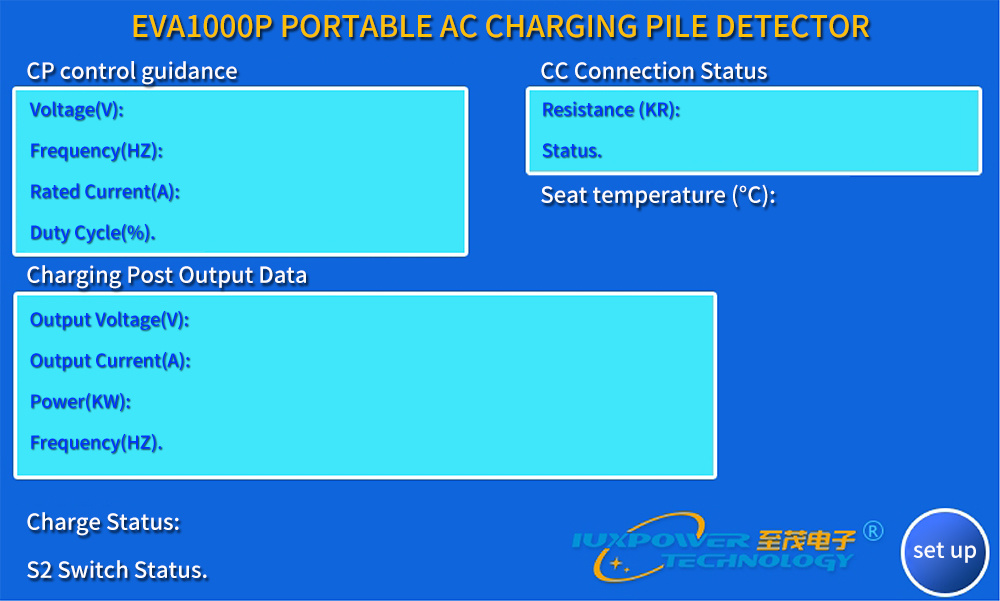

Main Interface

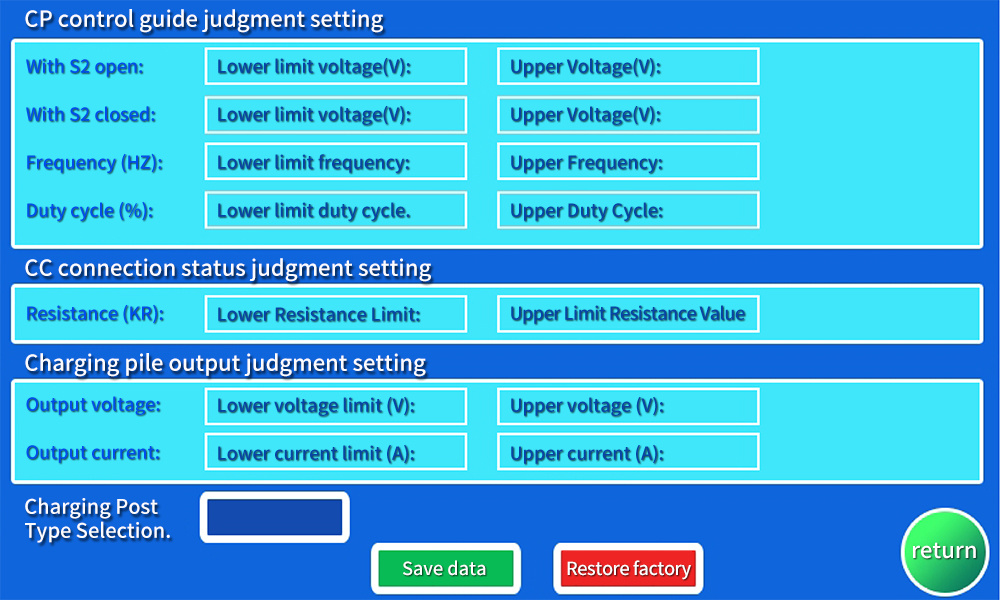

Settings
