IPDC2000 SERIES DC FEEDBACK ELECTRONIC LOAD
Series:
The IPDC2000 series of multifunctional bidirectional DC power supplies adopts a three-phase PFC feedback design, pure digital PWM rectification technology, and four-quadrant SVPWM technology for AC-DC bidirectional conversion, enabling bidirectional energy flow.
Details
The IPDC2000 series multi-functional bidirectional DC power supply adopts a three-phase PFC feedback design, pure digital PWM rectification technology, and uses four-quadrant SVPWM technology for AC-DC bidirectional conversion. Energy flows bidirectionally, with a power factor of up to 0.99 or higher, and 100% energy feedback. It has low grid current pollution, a high input power factor (>0.99), and harmonics <3% during rated operation. The high power factor results in low grid pollution, meeting the requirements of national standard GB/T14549-93 for power quality and public grid harmonics. It features high output accuracy, fast dynamic response speed, and 100% energy feedback to the grid. It is widely used in the early R&D, later type testing, reliability testing, and production line product testing of products in fields such as new energy vehicle motors, electric control testing, power battery pack charge and discharge testing, and other power electronics testing. It meets the power supply requirements for test items in GB/T18488.1-2015, GB/T18488.2-2015, and GB/T29307-2012.
The battery simulation function can simulate the charge and discharge characteristics of various batteries. Users can select different battery types, series and parallel numbers, and SOC indicators to comprehensively simulate the output characteristics of the battery, including the change in battery internal resistance characteristics during battery discharge.
The programmable DC power supply function has constant voltage, constant current, and constant power output modes. It can automatically switch between modes, maintaining a balance between control and protection to ensure high-precision, low-ripple, and fast voltage and current dynamic response speed of the DC power supply output.
The DC electronic load function has constant resistance, constant voltage, constant current, and constant power functions. Note: Multi-channel output can be customized, and channels can be used in parallel.
Product Applications
Onboard charger/OBC/DC-DC/Hydrogen fuel cell/Aerospace, military electronics/Electrical and electronic/New energy motors, electric controls, batteries/Electronic components
Product Features
◆ Three-phase P.F.C feedback design. The system adopts a two-stage architecture of AC-DC and DC-DC bidirectional conversion, which effectively stabilizes bus voltage fluctuations during sudden load changes, thereby improving the overall output dynamic response time and providing complete electrical isolation.
◆ AC-DC bidirectional conversion uses four-quadrant SVPWM technology, allowing for bidirectional energy flow and a power factor of 0.99 or higher. It features low grid harmonic pollution, 100% energy feedback, low grid current pollution, and a high input power factor (>0.99) with harmonics <3% during rated operation.
◆ Intelligent monitoring function and user-friendly human-machine interface. It can be remotely controlled via CAN bus or PC.
◆ Features constant voltage, constant current, and constant power functions, with voltage and current adjustable from 0-100%. It can operate in both power supply and load modes. Traditional power supplies have the same maximum and rated output voltage, while our power supply's maximum output voltage far exceeds the rated value. At voltages above the rated value, the power supply outputs at constant power, maximizing output capability.

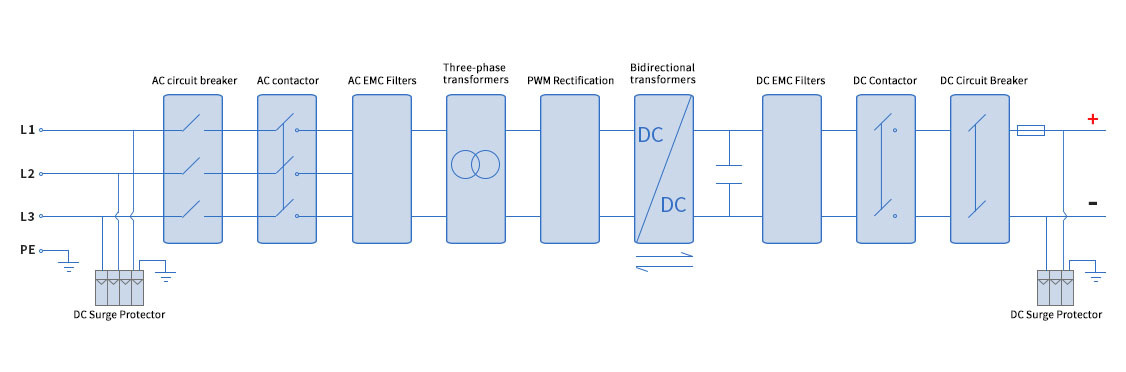

Product Principle
Product Specifications
| IPDC2000 Series Multi-functional Bidirectional DC Power Supply | ||||||||||||||||||
| Model | IPDC1005D | IPDC1010 | IPDC1020 | IPDC1030 | IPDC1060 | IPDC1100D | IPDC1200D | IPDC1300D | IPDC1500D | |||||||||
| Capacity | 5 KW | 10 KW | 20 KW | 30 KW | 60 KW | 100 KW | 200 KW | 300 KW | 500 KW | |||||||||
| Manufacturing Method | Switch PWM | |||||||||||||||||
| Operating Mode | Power supply mode: Constant voltage, constant current, constant power; Load mode: Constant power, constant current, constant resistance | |||||||||||||||||
| AC Characteristics | Phase | 1φ2W+PE (Single-phase two-wire + ground) | 3φ4W+PE (Three-phase four-wire + ground) | |||||||||||||||
| Voltage | 220V±10% | 380V±15% | ||||||||||||||||
| Frequency | 47 Hz – 63 Hz | |||||||||||||||||
| Power Factor (PFC) | ≥0.99 (Rated Power) | |||||||||||||||||
| Current Harmonics (THDI) | <3% (Rated Power); 100% feedback to the grid, high efficiency and energy saving, no pollution to the grid | |||||||||||||||||
| DC Characteristics | Voltage Range | 10-100V | 10-800V (Voltage 50-1500VDC, number of channels, etc. can be customized, channels can be used in parallel) | |||||||||||||||
| Rated Voltage | 50V | 50V | 300V | 300V | 300V | 300V | 300V | 300V | 300V | |||||||||
| Rated Current | ±100A | ±200A | ±67A | ±100A | ±200A | ±334A | ±668A | ±1000A | ±1667A | |||||||||
| Peak Current | ±120A | ±240A | ±80A | ±120A | ±240A | ±400A | ±800A | ±1200A | ±2000A | |||||||||
| Rated Power | 5KW | 10KW | 20KW | 30KW | 60KW | 100KW | 200KW | 300KW | 500KW | |||||||||
| Peak Power | 6KW | 12KW | 24KW | 36KW | 72KW | 120KW | 240KW | 360KW | 600KW | |||||||||
| Peak Time | 60S continuous | |||||||||||||||||
| Response Time | ≤5ms (10%-90% step load) | |||||||||||||||||
| Switching Time | ≤±0.5%FS (FS Resistor Load) | |||||||||||||||||
| Voltage Ripple (rms) | ≤0.2%F.S | |||||||||||||||||
| Current Ripple | ≤0.1%F.S | |||||||||||||||||
| Voltage Accuracy | ≤0.1%F.S | |||||||||||||||||
| Current Accuracy | ≤0.1%F.S | |||||||||||||||||
| Power Accuracy | ≤0.1%F.S | |||||||||||||||||
| Load Characteristics | Constant Power Accuracy | ≤0.3%F.S | ||||||||||||||||
| Constant Current Accuracy | ≤0.2%F.S | |||||||||||||||||
| Constant Resistance Accuracy | ≤0.2%F.S | |||||||||||||||||
| Battery Simulation | Function | Simulates the charging and discharging characteristics of various batteries. Users can select different battery types, series and parallel numbers, and SOC indicators to comprehensively simulate the battery's output characteristics, including the change in battery internal resistance during the battery discharge process. | ||||||||||||||||
| Charging Pile Test | Function | BMS simulation function, charging pile interoperability, protocol consistency, fault simulation, etc. | ||||||||||||||||
| Feedback Characteristics | AC Voltage/Frequency | 45Hz-55Hz | ||||||||||||||||
| Current Harmonic Distortion | ≤3% | |||||||||||||||||
| Power Factor | ≥0.99 | |||||||||||||||||
| Feedback Power | Supports full-scale power feedback | |||||||||||||||||
| Switching Time | ≤10ms (+90% -90%) | |||||||||||||||||
| Overall Efficiency | ≥93% | |||||||||||||||||
| Display | 7-inch LCD touch screen | |||||||||||||||||
| Communication Interface | RS485 standard/Ethernet port (optional)/CAN (optional) | |||||||||||||||||
| Insulation Resistance | Input to housing 20MQ 500VDC, output to housing 20MQ 500VDC | |||||||||||||||||
| Withstand Voltage Characteristics | Input to housing 1500VAC 1 minute, input to output 1500VAC 1 minute | |||||||||||||||||
| Noise (1m) | <70dB | |||||||||||||||||
| Protection | Over voltage, Over current, Over temperature, Overload, Short circuit | |||||||||||||||||
| Cooling | Forced air cooling | |||||||||||||||||
| Weight (Kg) | 30 | 50 | 200 | 400 | 800 | 1200 | 1800 | 2500 | 3000 | |||||||||
| Dimensions W×H×D(mm) |
482x265 x600 |
482x399 x600 |
550x1250 x700 |
800x1880 x1050 |
1000x1880 x1050 |
1000x1880 x1200 |
1200x2000 x1400 |
1400x2000 x1600 |
1600x2000 x1800 |
|||||||||
| Operating Environment | -10~45℃ (Outdoor -20℃, 50℃ requires customization) 10-90%RH | |||||||||||||||||
